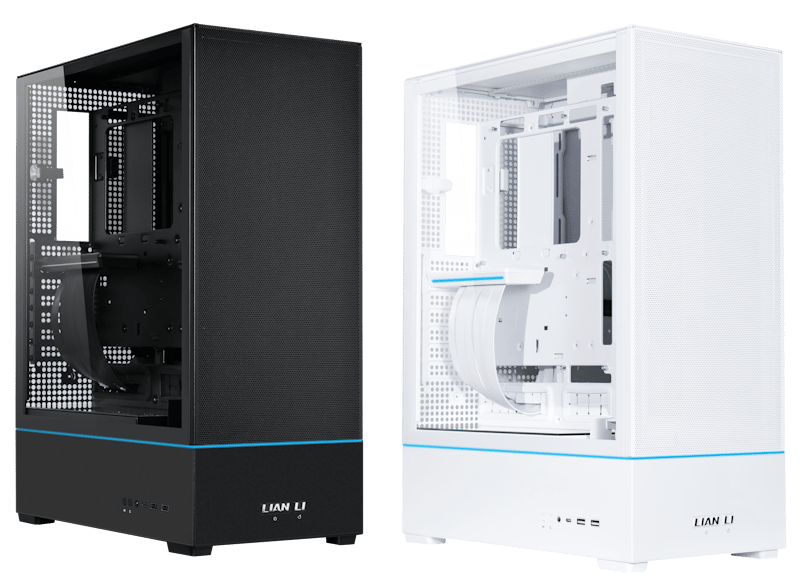

Lian Li Releases Reduced-Depth SUP-01 Mid-Tower

Lian Li today announced retail availability of its new reduced-footprint (15.9″-deep by 8.34″-wide) mid-tower (21″ high). Compact by current standards, the firm’s marketing strategy would have us forget that mid-towers used to be 18x18x8 inches. Unique to the design is that the firm used its extra 3″ of height to place two 360mm radiator mounts side-by-side behind the motherboard, rather than on the top panel. And, since putting radiators behind the motherboard pushed the motherboard chamber too close to the side to fit a large graphics card, the firm also added a remote graphics card mount to the back of the front panel.

With those details in mind, here’s how Lian Li describes its case:

May 30th, 2024, Taipei, Taiwan – LIAN LI Industrial Co. Ltd., a leading manufacturer of chassis and PC accessories, launches the SUP-01, a small tower case that revolutionizes the conventional layout of standard PCs. Engineered with three distinct airflow chambers, each dedicated to essential components—GPU, CPU’s AIO, and motherboard. The SUP-01 positions the GPU at the center of the front panel on a fully adjustable bracket, and accommodates up to a 360 AIO behind the motherboard tray for enhanced cooling efficiency. A non-tinted tempered glass panel on the left side offers a clear view of the main chamber which supports up to regular ATX motherboards and ATX back-connect motherboards, and the PCIe riser bracket with built-in diffused LED strips. Additional LED strips decorate the top edge of the PSU chamber along both the left and front sides of the case. Available in black and white, the SUP-01 retails at an MSRP of $149.99.

45L tower with a compact footprint and cooling performance on par with LANCOOL 216
Comes with 3 pre-installed 120mm PWM fans in the right side chamber
3 airflow chamber design with front-facing upright graphics card, a dedicated main chamber for the motherboard, and AIO radiator and fans mounted in the right side chamber
Airflow focused with steel mesh panels at the front, top, right side, and rear
Supports back-connect ATX motherboards
Built-in RGB strip along front and left side panel, and on PCIe riser bracket

Specifications

Model	SUP-01
Case Type	Small Tower Chassis
Dimensions	(D) 404mm x (W) 212mm x (H) 534mm
Color	Black / White
Material	Steel 4.0mm Tempered Glass
Motherboard Support	ATX/Micro-ATX/Mini-ITX and ATX Back Connect
Expansion Slot	7 slots for half-height cards 4 slots for full-height cards
Storage	Above PSU Shroud: 2 x 2.5” SSD Hard Drive Cage: 2 x 3.5” HDD / 2.5” SSD
GPU Length Clearance	400mm (Max.)
CPU Cooler Height Clearance	88mm (Max.)
PSU	ATX (Under 220mm)
Fan Support	Side 1: Up to 3 x 120mm (included) Side 2: Up to 3 x 120mm / 3 x 140mm Rear (outside): Up to 1 x 120mm
Radiator Support	Side 2: 360 / 240 / 280mm
I/O Ports	1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x HD Audio 1 x Color Button 1 x Mode Button
Dust Filters	1 x Bottom (Tray) 1 x Front Side (Magnetic) 1 x Top Side (Magnetic)
